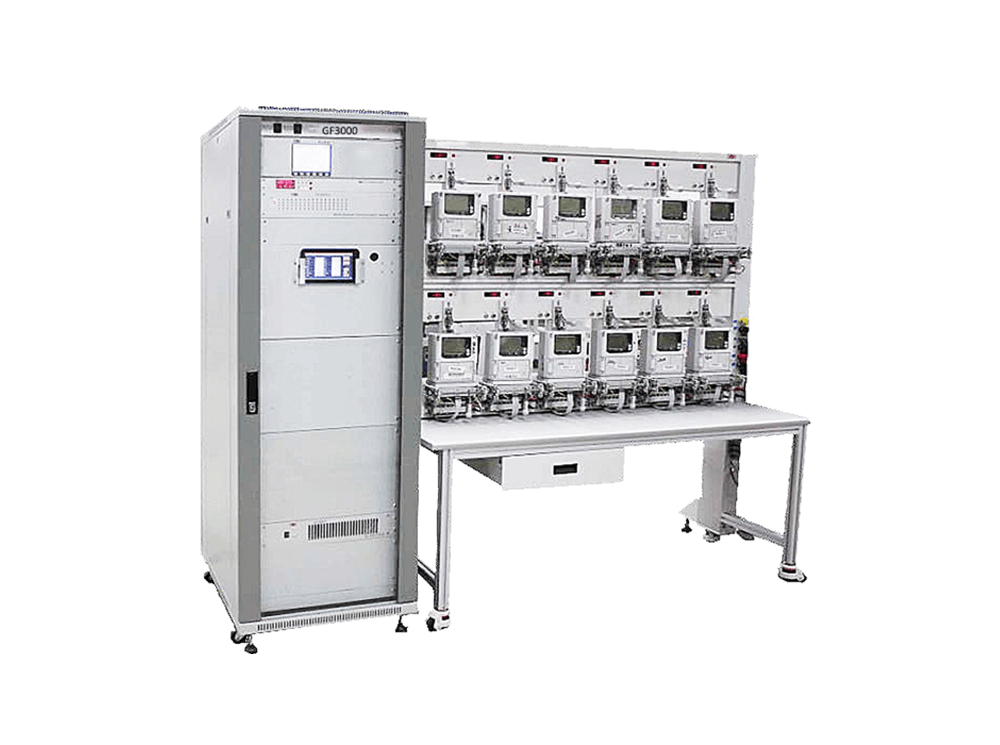

GF3000 STATIONARY MULTI-POSITIONS THREE PHASE ENERGY METER TEST BENCH

Meter positions can be chosen from 3 - 48 (3, 6, 12, 20, 24, 40, 48pcs )
Precision：0.02%, 0.05%, 0.1%
1.AC Current Output：120A AC voltage output : 0-480V
2.Harmonic number: 2-51times/ Frequency：40Hz-70Hz
3.Communication Port: RS232; With auto PC control software
4.Self-check and perfect protection function
5.Large LCD display and simple interface for operation
6.Able to print out all kinds of test reports with the standard forms
7.High stability of power source/High accuracy, 6-digit display the energy relative errors are no more than 0.05%(0. 1%)within the measuring range
8.Equipped with three phase multifunction reference meter and program-conrolled three phase power source which can be separately used and are convenient for testing
9.Meter constant test;Starting current test;Creep test (No-load test);Dips and Interruptions;Dial test (Register test);, 24 hour variation test./Supporting bar code input, which increase the efficiency of input
10. Full automatic, semi automatic and manual operation available. + rozwiń
