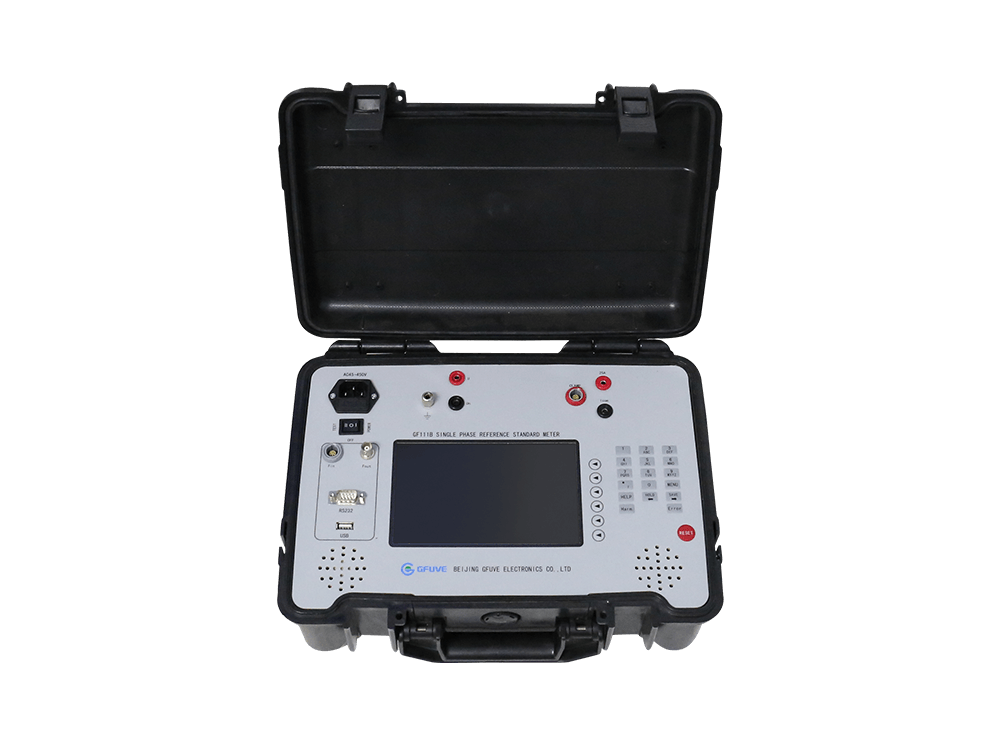

GF111B single phase reference energy meter with 100A clamp on CT

Accuracy class: 0.04% 0.05% 0.1% (clamp on CT: 5A-5000A)
1.Wide measuring range 0 -576V /0.001-120A(30A)/40-70Hz
2. Phase angle precision less than 0.02°
3. High stability 0.005%/min, high reliability
4. display of vector diagram and waveform
5.Metal structure, strong and reliable
6.power register testing
7.Harmonic analysis for voltage and current up to the 51th harmonics
8.Programmable pulse constant output up to 750000
9.Large capacity storage device for mass memory
10. 7 inch TFT color touch LCD
11.Energy accumulation, Self-calibration,PC software
12. communication port: USB and RS232 port. (3kg; Degree of protection:IP65)
