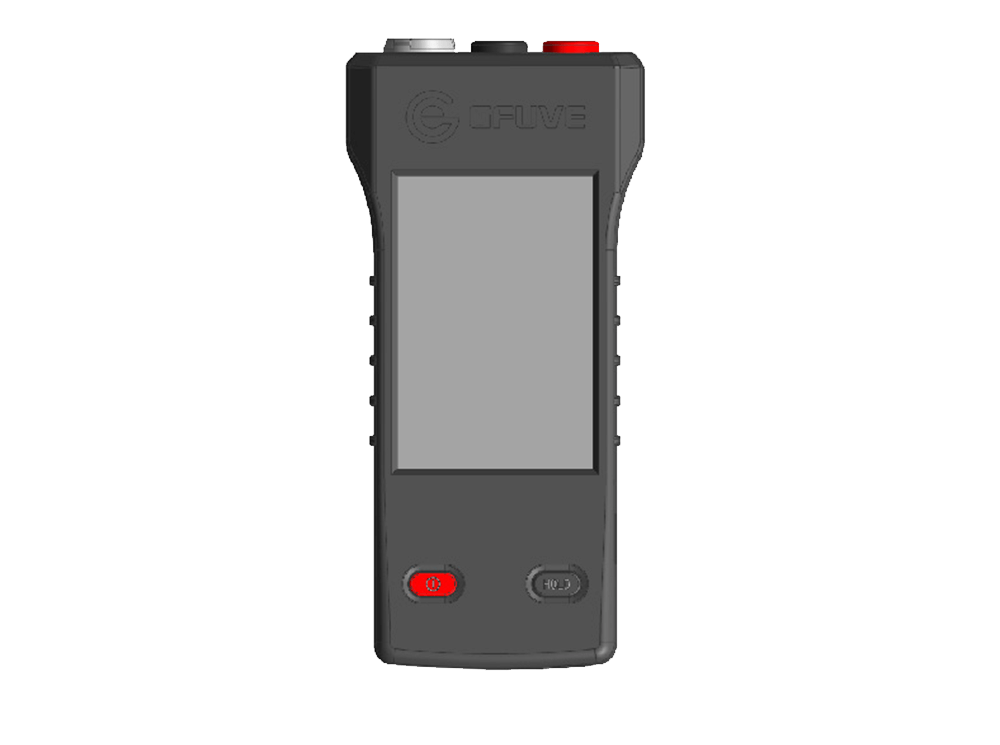

GF112V2 handheld single phase energy meter tester

Accuracy class: 0.1% (clamp on CT: 10 A-1000A)
1.Wide measuring range 0 -600V /0.001-200A/40-70Hz
2.Display harmonic contents and bar graph
3. The AAA Li-battery can work 48 hours continuously, also can be replaced
4. display of vector diagram and waveform
5.energy meter counter testing and energy/ power register testing
6.Harmonic analysis for voltage and current up to the 63 th harmonics
7.Wide measuring range 0 -300V /0.001-120A(optional 600A)
8.Large capacity storage device for mass memory: 5000 sets energy meter data
9. 3.5 inch color touch TFT LCD
10.Android APP software optional
11. communication port: USB and BT port. With PC software control, U disk download test data (0.22kg; Degree of protection:IP54)
12. 4-quadrant measurement and External thermal-printer
13. testing of 1P2W electricity/mechanical/inductive energy meter error
14.Automatic compensation for clamp on cts
15.The best light weight handheld meter test set + rozwiń
