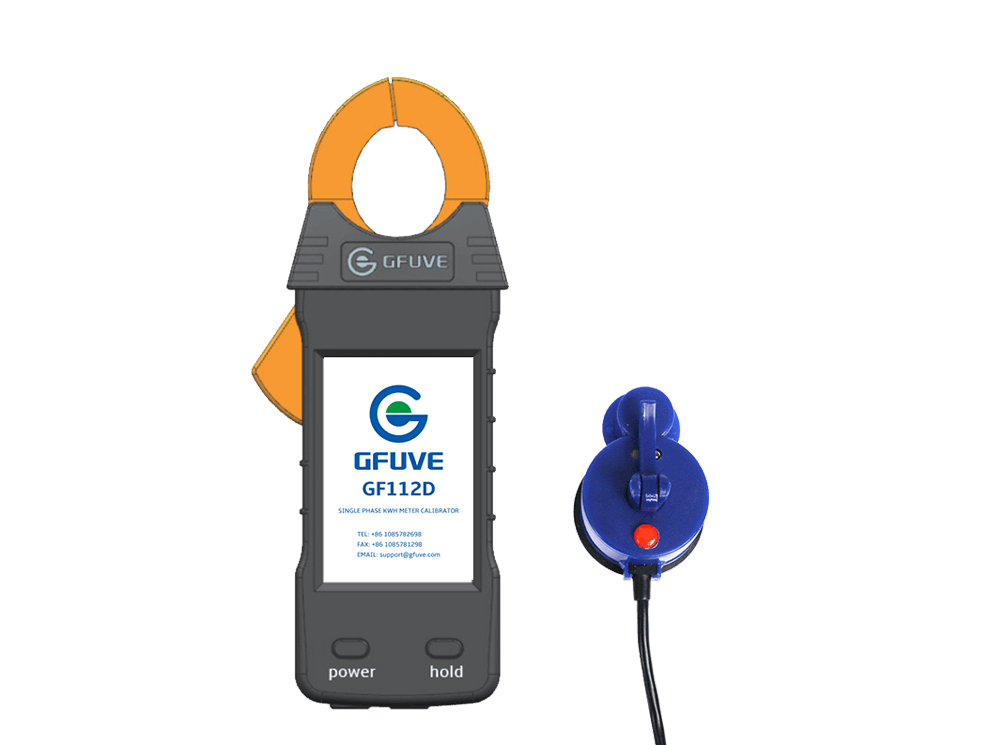

GF112D single phase electricity meter tester

Accuracy class: 0.1% 0.2% (Aperture of current clamp: 30mm or 50mm)
1.The best light weight meter test set
2. The meter and current clamp have Integration design
3. The AAA Li-battery can work 48 hours continuously, also can be replaced
4. display of vector diagram and waveform
5.energy meter counter testing and energy/ power register testing
6.Harmonic analysis for volta ge and current up to the 63th harmonics
7.Wide measuring range 0 -300V /0.001-120A(optional 600A)
8.Large capacity storage device for mass memory: 5000 sets energy meter data
9. 3.5 inch color touch TFT LCD
10.The current clamp has automatic compensation
11. communication port: USB and BT port. With PC software control, export test report (0.5kg; Degree of protection:IP42)
12. 4-quadrant measurement and External thermal-printer
13. testing of 1P2W electricity/mechanical/inductive energy meter error + rozwiń
